Better Image Quality Through State-of-the-Art Print Technology

The VersaStudio utilizes the same advanced print technology as Roland’s VersaCAMM VS series. The new piezo inkjet head prints up to 1440 dpi using variable droplet technology with seven precise droplet sizes to optimize image quality. Roland Intelligent Pass Control™ Technology delivers exceptional quality prints with smoother gradations, richer density and deeper image saturation for photographic and vector output. Best of all, the print technology is built to last. The gold-plated head reduces static, preventing clogging, and a patent-pending wiper system decreases wear and tear on the print head and prolongs its life by reducing buildup.

No Roland Has Ever Been Easier to Use

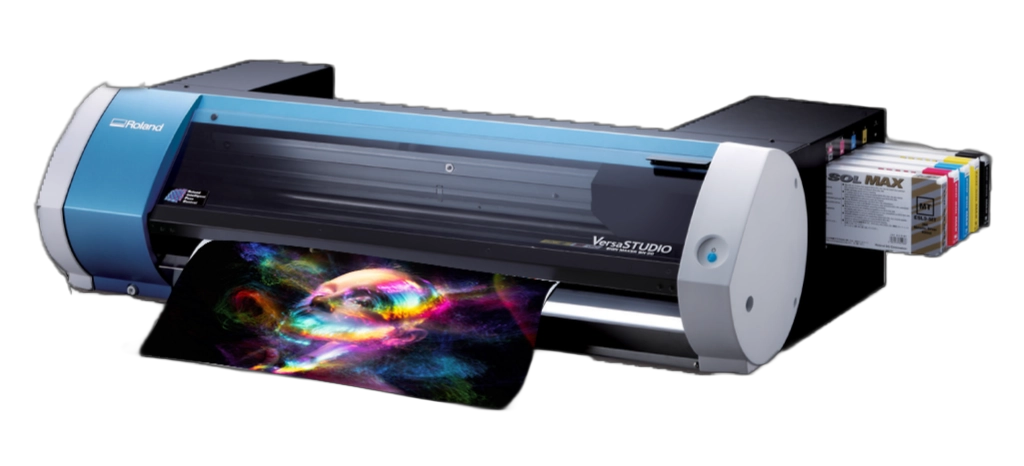

The BN-20 is the easiest to use of any device in the Roland printer lineup. All functionality of the device is handled through the VersaStudio utility software. The utility software package is actively open in the Windows® taskbar and controls basic machine functions, status and calibrations. The utility software also monitors replacement of consumable parts like wipers and contour cutting blades.

Four Different Ink Choices - Including Metallic Silver Ink

The BN-20 offers a choice of four different ink configurations. Four-color (CMMYK) is the best choice for standard process color inkjet printing. Eco-SOL MAX offers fast drying time, high density, wide color gamut, rugged scratch resistance, low cost per square foot and broad uncoated media support. Eco-SOL MAX is virtually odorless, and graphics are water and UV resistant up to three years outdoors** without lamination. ** CMYK only. Five color metallic option — combining metallic silver ink with CMYK — is the premier choice for versatility and market competitiveness. This allows you to add value and sophistication to virtually any graphic on a wide range of media, including clear vinyl and films, fine art paper, canvas, and photobase paper. Metallic Silver Eco-SOL MAX ink — recognized as DPI Product of the Year — can be printed as a spot color, or combined with CMYK to produce over 500 striking metallic and pearlescent colors. The new Metallic Texture Library adds 26 different texture fills as well.

Easy-to-Load Media Feed System

The BN-20 is equipped with a new simplified media feed system that automatically aligns roll media in the printer. This intuitive system detects and adjusts the pinch roll wheels to the width of the installed media, ensuring proper placement and tracking. The BN-20 supports roll media from six inches to 20 inches in width, weighing up to 13 pounds.

Bundled Design Software

The VersaStudio comes complete with R-Works, an entry-level design package created by Roland. It allows you to import stock photos or personal photos taken with a digital camera, create original layouts with text, and edit custom print and cut graphics. R-Works also includes a vector art library of stock designs.

VersaWorks Professional RIP Software

Developed exclusively for Roland inkjet printers and printer/cutters, VersaWorks RIP software ensures exceptional production output with unmatched ease of use. Based on the latest Adobe CPSI 3019 engine, VersaWorks includes advanced error diffusion, 16-bit rendering, and the Roland Color system, which accurately reproduces more than 1,000 standard colors and 512 metallic colors. With Roland@NET, updates are free and easy, automatically uploaded through your Internet connection. VersaWorks is fully compatible with Windows 7, Vista and XP.

Automated Ink Circulation System

Roland’s own unique, patent-pending automated Ink Circulation System reduces waste of metallic silver ink for dramatically lower running costs. The system ensures exceptional image quality over the long term and minimizes VersaStudio’s maintenance requirements.

Print and Cut in One Integrated Workflow

The VersaStudio streamlines the production process by automatically contour cutting printed graphics, eliminating the need to reload and reposition graphics. For laminated graphics, our Quadralign® four-point optical registration system allows users to remove prints, laminate and simply reload them for precision cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion.

Print/Cut Advantage

The VersaCAMM SP-i series streamlines the production process by automatically contour cutting printed graphics. By eliminating the need to reload and reposition graphics, the VersaCAMM's integrated cutters save time and effort.

Roland Intelligent Pass Control

Roland Intelligent Pass Control technology developed by Roland software engineers represents the pinnacle of inkjet printing. This patent-pending system precisely controls dot placement between passes and delivers unprecedented imaging performance in all resolutions. The technology actually enhances image quality at higher print speeds thereby increasing productivity. As a result, the SP-i series produces smooth gradations and flawless solid colors while achieving faster throughput with virtually no banding in all print modes.

ECO-SOL MAX Ink

ECO-SOL MAX eco-sol max is a remarkable innovation in ink technology. building on roland’s award-winning eco-solvent ink, eco-sol max offers fast drying time, high density, wide color gamut, scratch resistance, low cost per square foot, and broad uncoated media support. in addition, eco-sol max is virtually odorless and does not require any special ventilation or environmental equipment. eco-sol max graphics are water, scratch and uv resistant up to 3 years outdoors*. * outdoor durability is based on accelerated weather tests. results may vary depending upon location and application. dry times vary depending on specific media characteristics. lamination may be required for some applications or environmental conditions.

VersaWorks RIP Software

VersaWorks supports the Roland Color system which accurately reproduces more than 1,000 spot colors from color charts and swatch books. With VersaWorks, users can choose from print options including a high-speed mode for production banner printing, the MAX Impact preset for vivid outdoor graphics and Artistic mode for exceptional indoor graphics. In addition, VersaWorks features Variable Data Printing and supports up to four Roland devices simultaneously including printers, printer/cutters and cutters. It automatically estimates the ink usage and print time for each graphic so you can accurately monitor time and costs.

Integrated Heater System

The SP-300i and SP-540i include an integrated two-stage heater system which dries prints quickly even in High-Speed mode for immediate finishing, installation or collection by the take-up system. The system features two components: a print heater to accelerate ink fastness and brightness, and a dryer to accelerate the drying process and improve productivity, workability and scratch resistance. Heater settings are either user adjustable at the control panel or set within the VersaWorks media settings.

Heavy-Duty Media Handling

Roland-designed media flanges provide more robust media handling capabilities when printing on heavier rolls. This development prevents skewing and ensures stable media feeding through long print runs. The SP-300i handles rolls weighing up to 44 lbs. and the SP-540i accepts up to 66 lbs. and 8.3” in diameter.

Outstanding Print Quality

The SP-i series produces outstanding photorealistic graphics regardless of viewing distance. The printer precisely controls droplet placement in both the print head travel and media feed directions to provide up to 1440x720 dpi resolution. Built to Roland standards for precision imaging, the SP-i series features digital servomotors to micro-position the media. Variable droplet technology uses three droplet sizes to allow the right amount of ink to be deposited on the media at precisely the right time and in exactly the right place. This state-of-the-art implementation of Piezo print head technology delivers truly breathtaking output with beautifully smooth, band-free accurate color on a wide range of media – even at the highest print speeds.

High-Speed Production Printing

The VersaCAMM SP-i series powered by Roland Intelligent Pass Control achieves faster printing for greater productivity. On banner media, the SP-540i achieves 84 sqft./hr. in High-Speed mode and 52 sqft./hr. in Standard mode. The SP-540i and SP-300i are up to 50% faster in Standard mode than the previous models with the addition of Roland Intelligent Pass Control.

ECO-SOL MAX Running Costs

ECO-SOL MAX boosts the performance of Roland inkjets at low running costs that both you and your customers will appreciate.
For a low-density image, we estimate an average ink cost of $.16 per sqft. and an average media cost of $.30 per sqft. for a total of $.46 per sqft. For a high-density image, we estimate an average ink cost of $.28 per sqft. and an average media cost* of $.30 per sqft. for a total of $.58 per sqft.

Automated Maintenance System

The SP-300i and SP-540i feature an automated maintenance system that saves valuable ink and time resulting in lower running costs. The system also ensures consistent image quality and trouble-free operation for busy production environments. During normal operation the printer can wipe and clean the print heads at regular intervals to prevent clogging from dust and other debris. If the unit is idle for a period of time, the printer can also perform an automated routine to maintain the print heads in top condition. In addition, a new maintenance cover ensures easy access to print heads for manual cleanings.

Professional Take-up System Option

To facilitate precision unattended printing, the VersaCAMM SP-i series supports an optional automated media feed and take-up system. This system includes a convenient front-mounted take-up roller and an advanced tension-controlled take-up unit for optimum media feed and tracking. The TU2-30 and TU2-54 are priced at $2,094.75 each.

Eco-SOL™ Media

Eco-SOL Media is developed especially for Roland ECO-SOL MAX ink and includes a wide selection of competitively priced, uncoated adhesive-back vinyls and other popular substrates. The line-up currently consists of glossy, matte, clear and translucent calendered, premium cast vinyl, premium reflective vinyl, view-through vinyl, flame retardant scrim banner, blockout scrim banner and solvent glossy paper.

Metallic Silver & White

• Three years outdoor durability for CMYK, one to three years for Metallic, one year for White
• Eco-SOL Max Silver Metallic Ink prints as a spot color or combines with CMYK for hundreds of stunning metallic colors

Double CMYK

• Max speed of 248 sq ft/hr
• Three years outdoor durabilit
• Ideal for the highest print speeds and no chromatic banding – even with bi-directional printing – due to the mirrored ink order

6-Color LcLm

• Superior color gamut and image quality
• Three years outdoor durability
• Provides enhanced blues and reds, flawless flesh tones and improved image quality across lighter colors

7-Color White & White

• Three years outdoor durability for CMYKLcLm, one year for White
• Perfect for labels, packaging comps, window signs and other applications on clear media where added brightness and opacity make all the difference
• Requires the addition of the Benes OnlineDryer S Unit

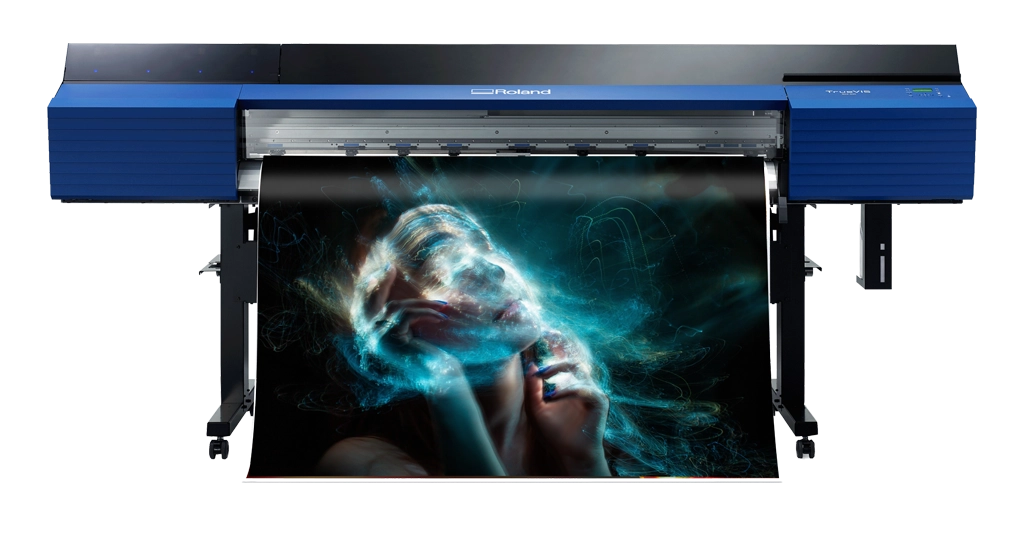

The World’s Most Advanced Wide-Format Digital Printing Equipment

The VersaCAMM VS printer/cutter line combines 20 years of innovation and expertise into one device, including integrated printing and contour cutting capabilities, next generation print head technology and accelerated print speeds. Available in three sizes and ink configurations, the VS series is also capable of printing white text, floods and hundreds of brilliant metallic colors for premium graphics and wraps. Affordably priced, the VersaCAMM VS digital printing equipment is both an exceptional value and a uniquely versatile production tool.

Metallic Silver Effects

A remarkable innovation in advanced inkjet technology, the VS Series is available with an optional metallic and white ink configuration that allows users to add value and sophistication to virtually any graphic. Recognized as DPI Product of the Year, Metallic Silver Eco-Sol MAX® ink can be printed as a spot color or combined with cmyk to produce over 500 striking metallic and pearlescent colors.

Automated Ink Circulation System

Unlike other digital printing equipment, the VS series of wide-format printers come standard with Roland’s automated Ink Circulation System to prevent the pigments in metallic silver and white inks from settling. Designed to reduce waste of white and metallic silver ink, the circulation system dramatically lowers running costs while ensuring exceptional image quality throughout the longest production runs.

Two Print Modes for Metallic Effects

Choose from Blended and Layered print modes to optimize metallic images. Blended mode prints CMYKLcLm and metallic silver ink together for more natural metallic colors, while Layered mode prints metallic silver first, followed by CMYKLcLm in one pass to add richness to metallic effects.

VersaWorks™ RIP Software

Developed exclusively for Roland inkjet printers and printer/cutters, VersaWorks RIP Software takes full advantage of the vs series capabilities. based on the latest adobe® cpsi 3019 engine, versaworks includes advanced error diffusion and 16-bit rendering for exceptional production output and unmatched ease-of-use, and is fully compatible with windows® 7, vista and xp.

Print/Cut Advantage

The VersaCAMM VS streamlines the production process by automatically contour cutting printed graphics and eliminates the need to reload and reposition graphics, saving you valuable time and resources.

Print Speeds

With print speeds of up to 248.6 sq. ft. per hour for CMYK applications (VS-640) and print/cut capability, the VersaCAMM VS further expedites the production cycle by allowing you to print and contour cut your designs together – even unattended – in one easy step.

Advanced Media Handling

A true production printer, VS digital printing technology features an advanced media handling system allowing users to feed rolls up to 88 pounds for the VS-640, 66 pounds for the 540 and 55 pounds for the 300. Upgraded media flanges and seven pinch rollers secure the heaviest media in place, providing accurate feeding and tracking throughout the longest of production runs. Adjustable print heads enable you to accommodate variable media thicknesses.

Integrated Heating System

Roland printers are designed to dry prints quickly even in high-speed modes for immediate finishing, installation or collection by the take-up system. VS series wide format printers feature a built-in, two-stage integrated heater system that accommodates a wide range of media options. This advanced system precisely controls the proper amount of heat for each application, yielding outstanding results every time. For maximum convenience, users can store individual settings right in the printer.

High-Speed Network Connection

Equipped with Roland’s own 100 Base-TX/10 Base-T interface, VS series connects seamlessly to office networks without additional software, achieving an increased data transmission rate of 100 Mb/sec. This makes it easy to configure a highly efficient printing environment.

Eco-SOL Media

Eco-SOL Media is developed especially for Roland Eco-SOL MAX ink and includes a wide selection of competitively priced, uncoated adhesive-backed vinyls and other popular substrates. The line-up currently consists of glossy, matte, clear and translucent calendered, premium cast vinyl, premium reflective vinyl, view-through vinyl, flame retardant scrim banner, blockout scrim banner and solvent glossy paper. All Roland media is carefully tested and profiled to consistently achieve high-quality results.

Light Black, Metallic Silver and High-Density White Specialty Eco-Sol MAX 2 Inks

The Pro 4 features new Eco-Sol MAX 2 specialty inks that enhance image quality even at higher speeds, create stunning effects, and add value and sophistication to any graphic.

• Light Black - For better reproduction of gray color gradients and more natural skin tones.
• Spot Color Replacement Tool: Allows an operator to specify Roland colors directly in VersaWorks without the need to spend a great deal of time re-opening the source file to make changes.
• Built-in PANTONE® Spot Color Library: This new library helps streamline the conversion process from PANTONE® to CMYK colors and ensures accurate PANTONE® color matching.

Quadralign™

For laminated graphics, our Quadralign four-point optical registration system allows users to remove prints, laminate and simply reload them for precision cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion. The VS also functions as a stand-alone vinyl cutter.

Production Perfected

Roland's fastest, most powerful large-format printer/cutter ever, the new SOLJET Pro 4 XR-640 represents the next generation in large-format digital printing quality, precision and performance. With its two inline, mirrored print heads, integrated printing and contour-cutting technology, and new, environmentally friendly Eco-SOL MAX 2 inks (including light black, metallic silver and high-density white), the Pro 4 delivers greater productivity and unsurpassed image quality. It's both an exceptional value and the ultimate production tool. The highly versatile, easy to use Pro 4 lets you create colorful, vibrant large-format banners, signs, vehicle graphics, decals, POP displays, heat transfers for decorated apparel, and more with maximum speed and efficiency.

State of the Art Print Engine

The XR-640 incorporates the latest in inkjet technology design. It features two 8-channel piezo inkjet heads with 180 nozzles per channel. The print heads are arranged in an inline formation with seven different droplet sizes, allowing for smoother gradations and richer density for photographic and high-resolution vector output. Configured in a mirrored pattern through seven colors, in any of the four ink configurations, chromatic banding is virtually eliminated in bi-directional printing.

High-Speed Printing

With print speeds of up to 528 sq. ft. (49 m2/h) per hour for CMYK applications, as well as print/cut capability, the XR-640 expedites the production cycle by allowing you to print and contour cut your designs together – even unattended – in one easy, seamless step.

Print/Cut Advantage

The XR-640 large-format printer/cutter streamlines the production process by automatically contour cutting printed graphics. This integrated system eliminates the need to reload and reposition graphics, saving valuable time and effort. For cutting laminated graphics, the Quadralign four-point optical registration system automatically realigns the cutting path and compensates for media skew and distortion. With its included TU-2 take-up system, the printer is capable of performing long, unattended print runs with contour cutting. The Pro 4 can also function as a stand-alone vinyl cutter.

A Choice of Seven or Eight-Color Printing

The XR-640 offers a choice of seven or eight-color printing. Choose from the following ink configurations, depending on your needs.

Eco-Sol MAX 2 Ink

Roland's new, high-definition Eco-Sol MAX 2 eco-solvent inks are specially designed to optimize image quality and color on a wide range of coated and uncoated media. Like Roland's original Eco-Sol MAX inks, the new Eco-Sol MAX 2 inks are environmentally friendly and virtually odorless, so there's no need for special air filtration systems. Eco-Sol MAX 2 inks are also nickel-free for a healthier work environment. Inks are packaged in convenient 440 ml cartridges (White and silver available in 220 ml cartridges only) and are water, scratch and UV resistant up to three years outdoors*. Combined with variable droplet technology, Roland Eco-Sol MAX 2 inks deliver more brilliant color with superb detail in the highlights and smoother blends and transitions overall.

Automated Ink Circulation System

The Pro 4 XR-640 comes standard with Roland's Automated Ink Circulation System to prevent the pigments in metallic silver and white inks from settling. Designed to reduce waste of white and metallic silver ink, the circulation system dramatically lowers running costs while ensuring exceptional image quality throughout the longest production runs.

VersaWorks RIP Software

Developed exclusively for Roland inkjet printers, and printer/cutters, VersaWorks RIP software takes full advantage of the pro 4's capabilities. Based on the latest adobe cpsi 3019 engine, versaworks includes advanced error diffusion and 16-bit rendering for exceptional production output and unmatched ease-of-use, and is fully compatible with windows® 7, vista and xp. along with features such as variable data printing, embedded icc support, ink level adjustment tools and advanced cropping, tiling and nesting options; the newest versaworks features include the following:

• Predictive Ink Calculator and Alert: For flawless unattended printing, a predictive ink calculator estimates the amount of ink needed for each job. When there is not sufficient ink to complete a job, the RIP notifies the operator prior to printing.
• Spot Color Replacement Tool: Allows an operator to specify Roland colors directly in VersaWorks without the need to spend a great deal of time re-opening the source file to make changes.
• Built-in PANTONE® Spot Color Library: This new library helps streamline the conversion process from PANTONE® to CMYK colors and ensures accurate PANTONE® color matching.

High-Speed Network Connection

Equipped with a 100 Base-TX/10 Base-T interface, the Pro 4 connects seamlessly to office networks without additional software, achieving an increased data transmission rate of 100 MB/sec. This makes it easy to configure a highly-efficient printing environment.

Advanced Media Handling

A true production printer, the Pro 4 XR-640 features an upgraded media feed and take-up system that accommodates rolls of up to 88 pounds (40 kg) for long, unattended printing. Upgraded media flanges and seven pinch rollers secure the heaviest media in place, providing accurate feeding and tracking throughout the longest of production runs. Adjustable print heads enable you to accommodate various media thicknesses.

Integrated Tri-Heater System

The Pro 4 XR-640's integrated tri-heater system dries prints quickly even in high-speed modes for immediate finishing, installation or collection by the take-up system. The system features three components: a pre-heater that improves media receptiveness, a print heater to accelerate ink fastness and brightness, and a dryer to accelerate the drying process and improve productivity, workability and scratch resistance. All can be controlled from either the printer panel or Roland VersaWorks.

Optional DU-640 Dryer

The DU-640 Heater/Blower is offered as an option for the XR-640 and offers users several advantages, including the ability to print highly saturated images at full speed while using the take-up rollers. Image transfer and sticking caused by rolling up wet images are eliminated. For increased media feeding accuracy during print/cut operations, the DU-640 also enables users to take full advantage of all the XR-640 pinch rollers. The DU-640 is required for printing with white and metallic inks.

Light Black, Metallic Silver and High-Density White Specialty Eco-Sol MAX 2 Inks

The Pro 4 features new Eco-Sol MAX 2 specialty inks that enhance image quality even at higher speeds, create stunning effects, and add value and sophistication to any graphic.

• Light Black - For better reproduction of gray color gradients and more natural skin tones.
• Spot Color Replacement Tool: Allows an operator to specify Roland colors directly in VersaWorks without the need to spend a great deal of time re-opening the source file to make changes.
• Built-in PANTONE® Spot Color Library: This new library helps streamline the conversion process from PANTONE® to CMYK colors and ensures accurate PANTONE® color matching.

Reliability

As with all Roland large-format printers, the Pro 4 XR-640 offers years of reliable service, even in the most demanding shop environments. Every Pro 4 is solidly constructed and equipped with special enhancements for precision printing, contour-cutting and media handling. The Pro 4 XR-640 also features a new, automated print head wiper system for reduced maintenance and unmatched mechanical reliability.
