Professional 54-inch wide-format vinyl cutter for high-volume signage, vehicle graphics, labels and heat-transfer work. The GR2-540 combines fast cutting, up to 600 gf force and accurate print-then-cut alignment.
High-speed 54-inch cutting for professional print-then-cut workflows.

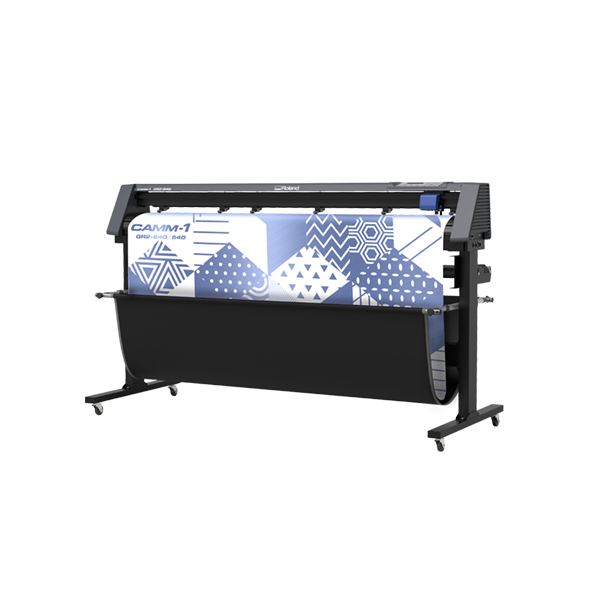

The Roland GR2-540 is a production-focused wide-format cutting plotter designed for sign and graphics businesses that need speed, precision and reliable media handling.
It integrates easily into print-then-cut workflows and provides the force required for reflective vinyl, laminated graphics, heat-transfer materials and other specialist media.
Sign shops, vehicle-graphics businesses, print service providers and apparel decorators that need a fast, robust cutter for daily production.
| Specification | Details |
|---|---|
| Cutting mechanism | Digital control servo motor / media-moving method |
| Maximum media width | 1,594 mm |
| Maximum cutting width | 1,372 mm |
| Maximum cutting length | 50 m |
| Maximum cutting speed | 1,530 mm/s |
| Cutting force | 5–600 gf |
| Repeatability | 0.1 mm or less |
| Connectivity | Ethernet, USB 2.0, RS-232C |
| Dimensions | 1,711 × 651 × 1,111 mm |
| Weight | 60 kg |
| Brand | Roland DG |
|---|---|
| Technology | Vinyl Cutting |
| Application | Labels & Decals, Signage, Textile, Vehicle Graphics |
| Product Width | 54 inch / 1594 mm media |
| Lifecycle Status | Current |
