Compact desktop CNC milling for prototypes, models and design projects. The monoFab SRM-20 provides a 203 × 152 × 60 mm machining area with precise 3-axis milling in an office, studio, classroom or small workshop environment.
Compact desktop milling for prototypes, models and detailed design work.

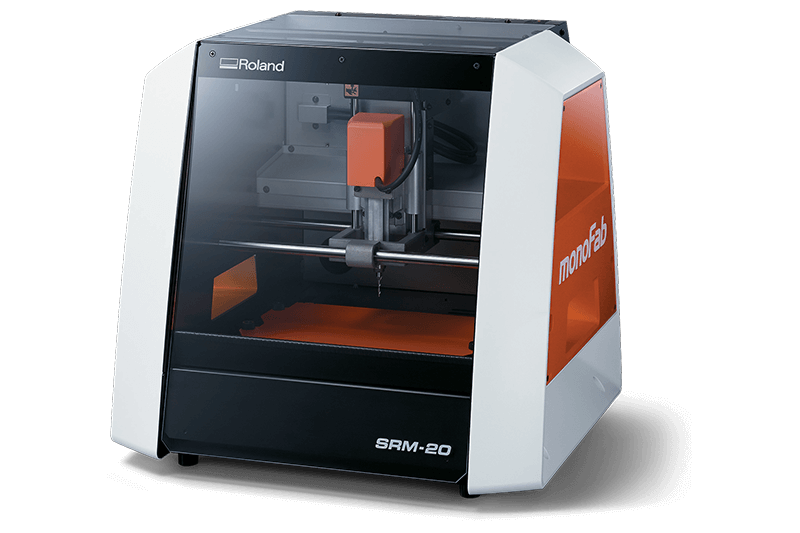

The Roland monoFab SRM-20 is a compact desktop CNC milling machine designed to make subtractive prototyping practical in offices, classrooms, studios and small workshops.

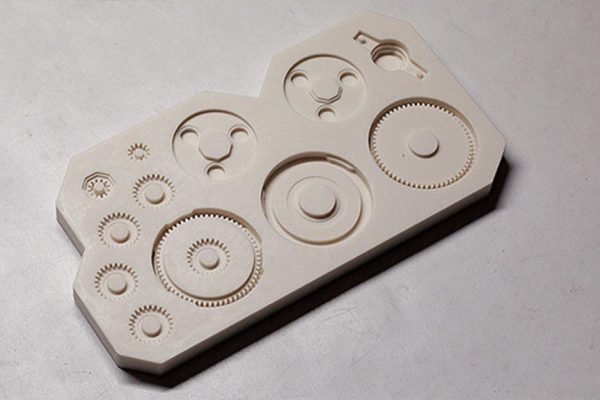

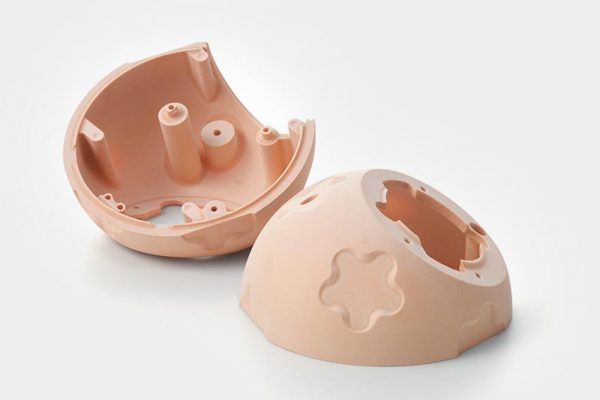

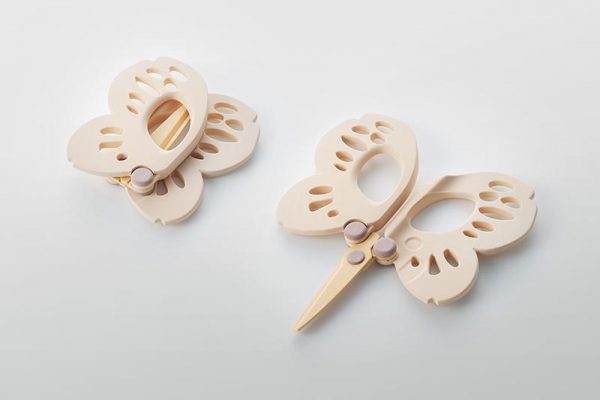

Its enclosed design, straightforward software workflow and precise 3-axis movement allow users to produce prototypes, models and components from materials including modelling wax, chemical wood, foam, acrylic, ABS and PC board.
Designers, schools, universities, engineering students, product-development teams, hobby-to-business users and small workshops requiring accessible desktop CNC milling for prototypes and models.
| Specification | Details |
|---|---|
| Milling method | 3-axis desktop CNC milling |
| Cuttable materials | Modelling wax, chemical wood, foam, acrylic, poly acetate, ABS and PC board |
| XYZ operating stroke | 203.2 × 152.4 × 60.5 mm |
| Workpiece table size | 232.2 × 156.6 mm |
| Maximum workpiece weight | 2 kg |
| Operating speed | 6–1,800 mm/min |
| Spindle motor | DC motor |
| Spindle speed | 3,000–7,000 rpm |
| Connectivity | USB |
| Control commands | RML-1 and NC code |
| Machine dimensions | 451 × 426.6 × 426.2 mm |
| Weight | 19.6 kg |
| Brand | Roland DG |
|---|---|
| Technology | Milling |
| Application | Prototyping |
| Product Width | 8 inch / 203 mm work area |
| Lifecycle Status | Current |
