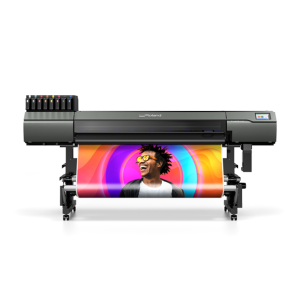

High-capacity 64-inch UV print-and-cut for premium signage, packaging graphics, labels and specialty effects. The TrueVIS LG-640 combines wide-format production with fast UV curing, white ink and integrated cutting.
Wide-format premium UV print-and-cut production for high-value graphics.
The TrueVIS LG Series combines integrated print-and-cut with premium UV-LED printing for fast-drying graphics, high-density white and specialty effects.
EUV5P inks and automated setup features make the LG Series a strong choice for businesses producing premium labels, packaging graphics, signage and other value-added roll-media applications.
Established print providers that need 64-inch UV print-and-cut capacity for higher-volume premium graphics and specialty applications.
| Specification | Details |
|---|---|
| Printing method | Piezo ink-jet |
| Media width | 335–1,625 mm |
| Maximum print/cut width | 1,600 mm |
| Ink | ECO-UV EUV5P, 750 ml pouches |
| Ink options | Up to 8 colours including White, Gloss, Primer, Orange and Red |
| Maximum resolution | 1,200 dpi |
| Cutting speed | 10–300 mm/s |
| Blade force | 30–500 gf |
| Connectivity | Ethernet |
| Dimensions | 2,902 × 748 × 1,412 mm |
| Weight | 209 kg |
| Brand | Roland DG |
|---|---|
| Technology | Print & Cut, UV |
| Application | Labels & Decals, Packaging, Signage |
| Product Width | 64 inch / 1625 mm media |
| Lifecycle Status | Current |
